Sustainable Alternative Modular House
Scope/Solutions
The Sustainable Alternative Modular (SAM) House is a new home construction technology developed to combat current and future impacts of climate change. It provides home buyers and developers with a structure designed to withstand forest fires, hurricanes, and moderate earthquakes, with the option to live carbon neutrally. The SAM House system, which is modular, factory-fabricated, can be assembled quickly and efficiently at the site with minimal equipment, reducing the time and waste associated with conventional construction. Designed to address critical needs, the SAM House meets the demand for safe, sustainable, and affordable housing in disaster-prone areas. SGH provided structural design consulting for the prototype and multiple models.
SGH developed the structural design for the prototype for the single-story house, utilizing glass fiber-reinforced concrete (GFRC) panels as the primary structural elements for the walls and roof. The prototype is approximately 24 ft by 24 ft with a concrete slab-on-grade and a sloped roof supported on exterior bearing walls and a central steel column. Highlights of our work include:
- Reviewing the architectural concept drawings

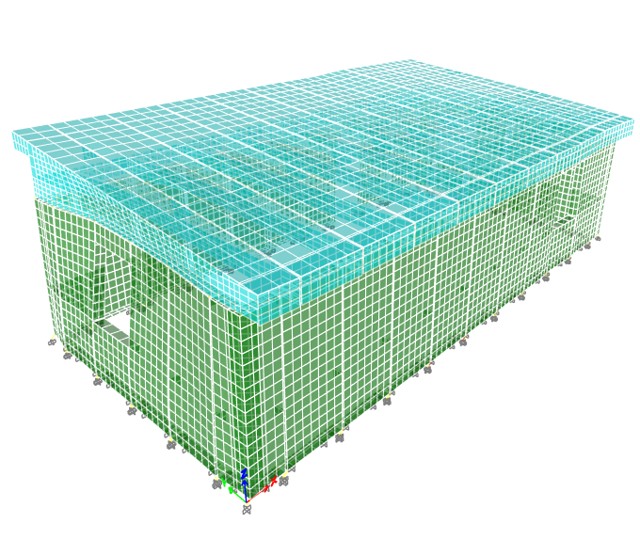

- Performing structural analyses to determine the panel and roof geometry
- Developing panel-to-panel connection details throughout the house
- Designing elements and components resistant to hurricane wind forces and moderate seismic loading
- Coordinating and reviewing material and component testing as part of our validation of the design methodology
1 of 3
Project Summary
Award
Winner
Solutions
New Construction
Services
Structures
Markets
Residential
Client(s)
SAM House Inc.
Specialized Capabilities
Building Design
