Brooklyn, NY
Scope/Solutions

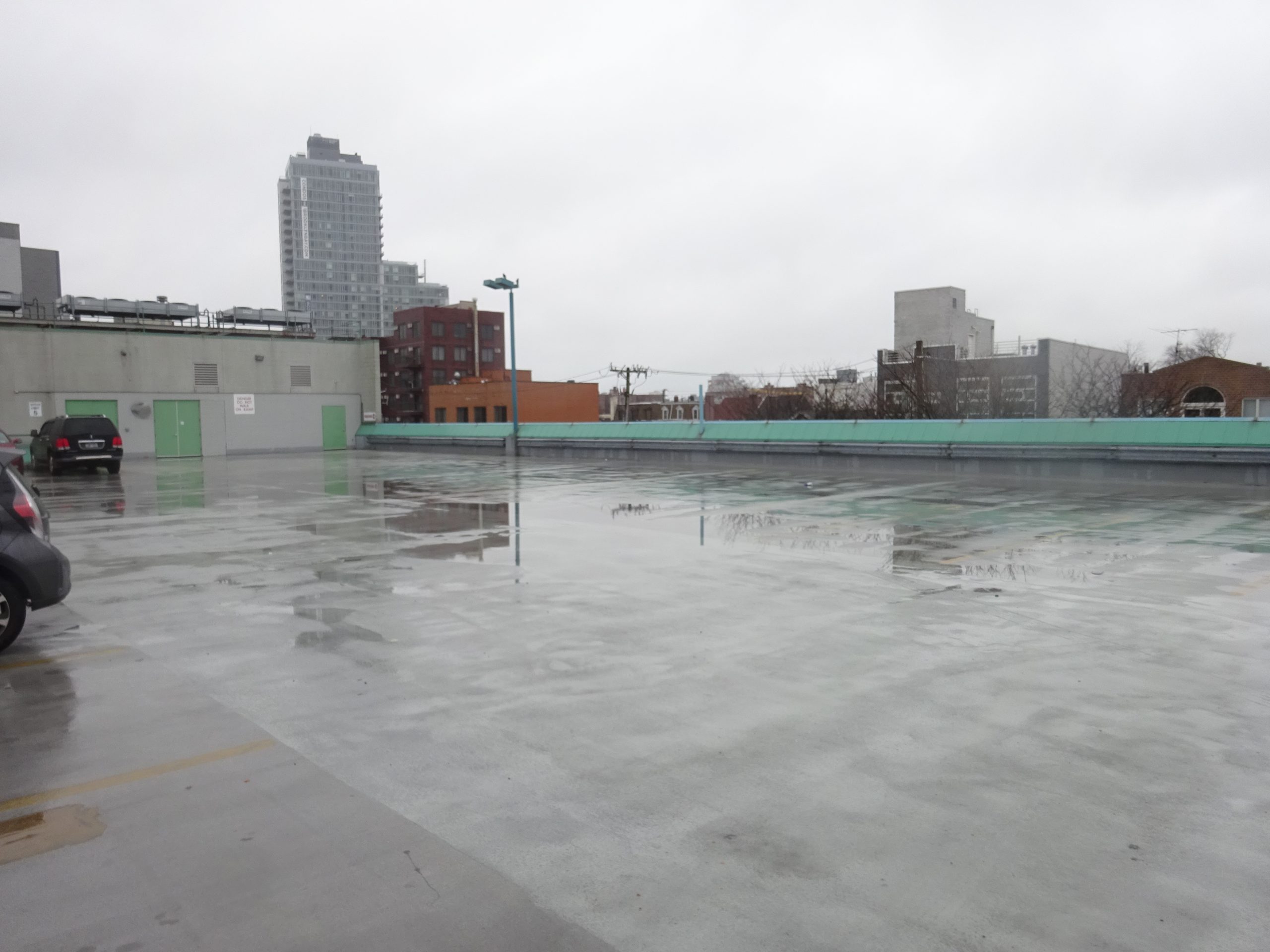

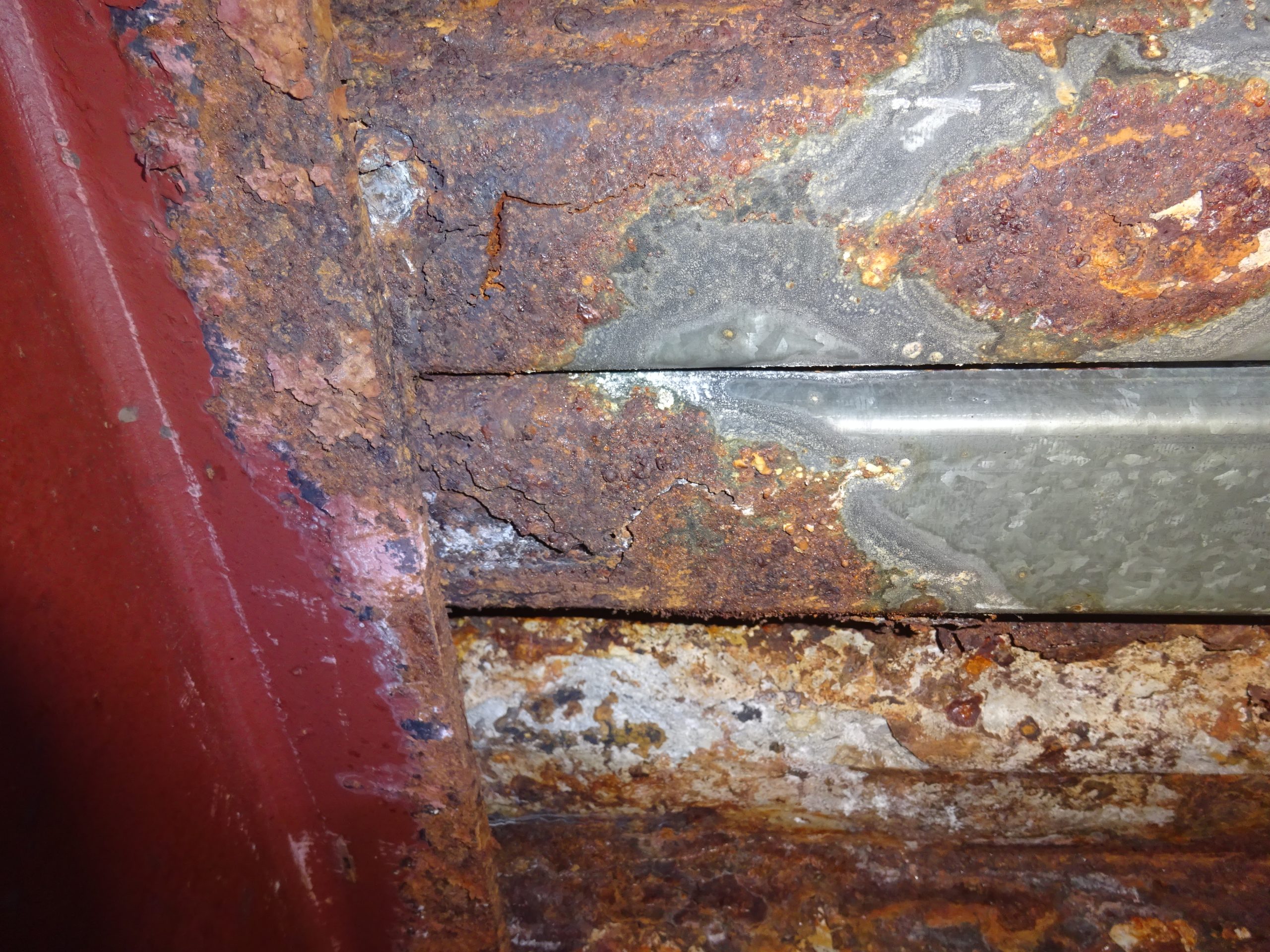

Shop & Stop Store #505 is a one-story building constructed with a rooftop parking deck. The parking deck is constructed with an unreinforced vehicular traffic coating over a composite concrete slab on metal deck supported on steel support framing. The exposed traffic coating failed, resulting in water leakage into the supermarket, and long-term leakage caused corrosion and deterioration of structural deck and steel support framing. SGH evaluated the condition of the traffic coating, the roof structure, and the exterior building walls, which were also covered with a failing elastomeric coating.

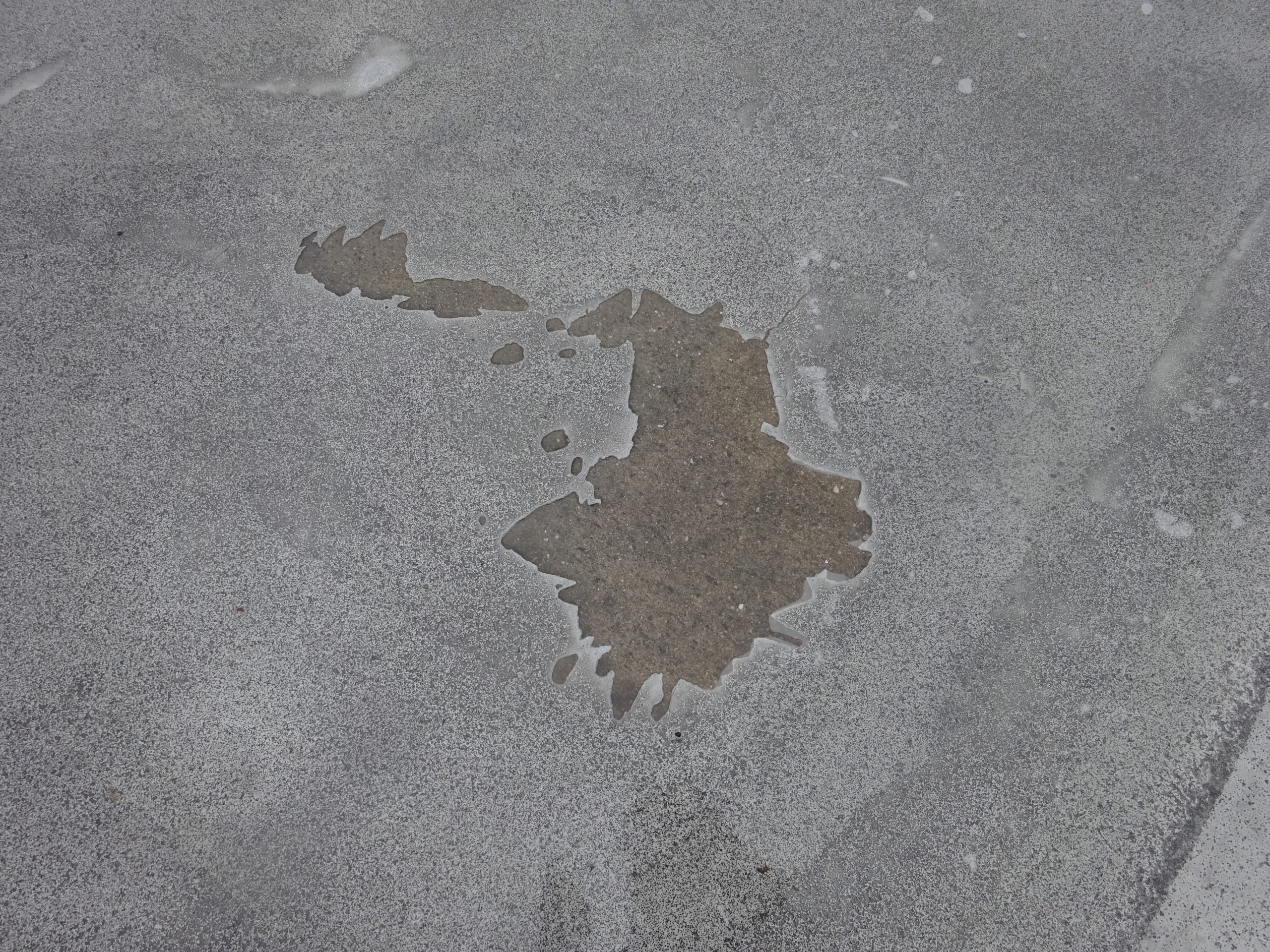

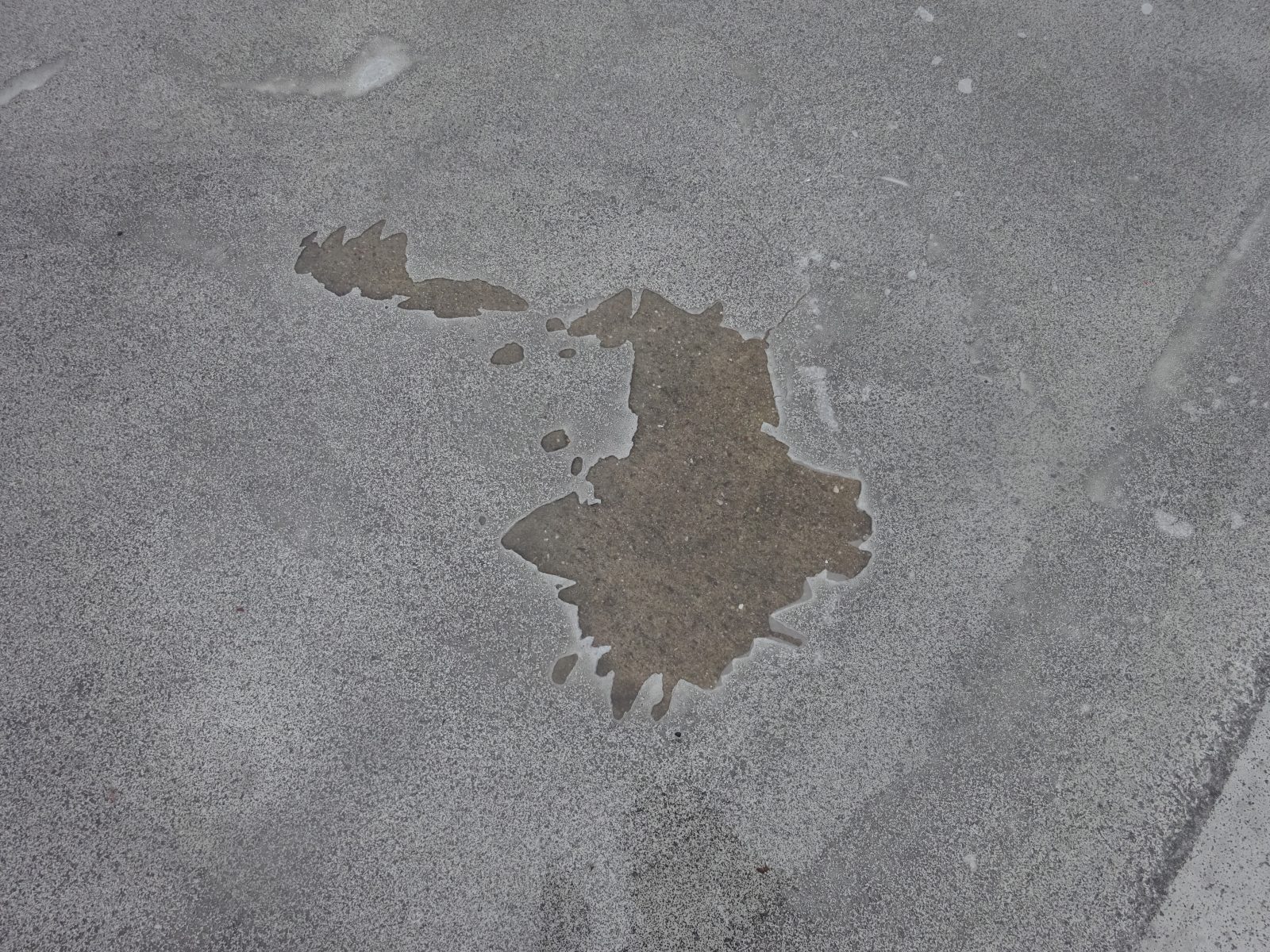

SGH visually surveyed the exterior and parking lot, conducted water testing to identify leakage paths, and made observations of the parking deck assembly at exploratory openings. We identified widespread water leakage through the elastomeric coating applied to the concrete deck and corrosion of the metal deck and steel framing. SGH analyzed the structural capacity of the composite slab, including areas with deterioration caused by long-term leakage. We designed repairs, including supplementing and repairing deteriorated structural components to restore the deck’s capacity, installing a fully reinforced vehicular traffic-bearing waterproofing system, and improving drainage. Highlights of our work include the following:
Project Summary
