Silver Spring, MD

Leisure World of Maryland

Scope/Solutions

Located on 610 acres, Leisure World of Maryland includes 5,660 homes inĀ 29 neighborhoods dedicated to residents 55+. The Greens, a two-building neighborhood, includes Buildings 15101 and 15107 on Interlachen Drive. Despite a 2014 project to repair deteriorated concrete and replace roofing at the two buildings, Building 15107 suffered from ongoing water leakage, as well as spalling concrete at previous repair locations. SGH investigated the reported leakage and concrete deterioration.

Our investigation included reviewing relevant documents and visiting the building to observe the existing conditions, document evidence of water leakage or concrete damage, make observations at exploratory openings, perform water testing to identify leakage paths, and conduct laboratory testing on extracted core samples.

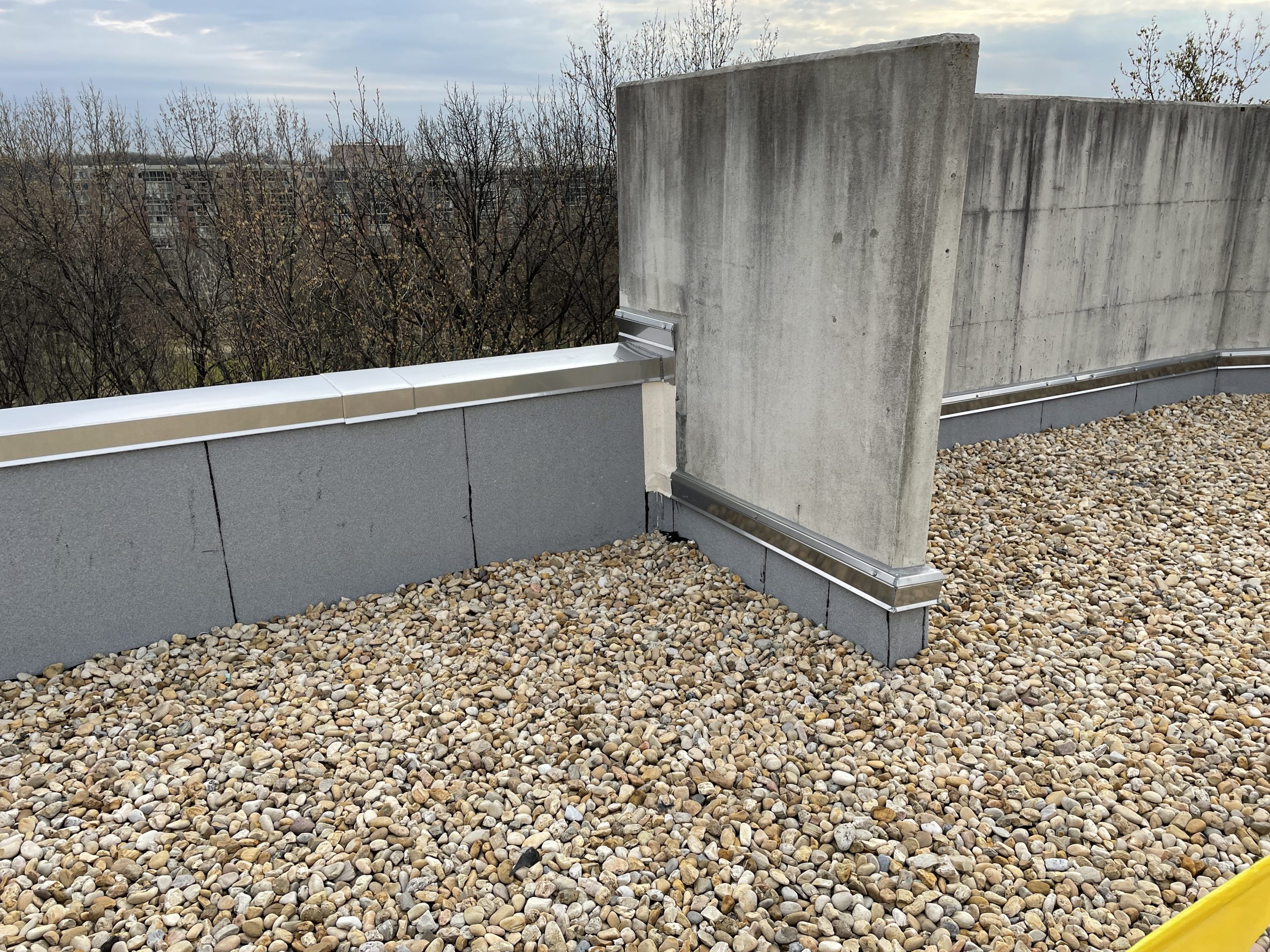

SGH identified vulnerabilities in the roof construction that made the building susceptible to water leakage, ongoing concrete deterioration due to corrosion of embedded steel reinforcement, and defects in the previously installed partial depth concrete repairs that contributed to delaminations. We collaborated with the condominium association and the original repair contractor to help them implement repairs, including replacing the defective concrete repairs, repairing new areas of delaminated concrete, and installing a new roofing membrane with improved flashing details in select areas. We also designed steel dunnage to resupport rooftop mechanical units where roofing needed to be repaired below original concrete equipment pads.

Project Summary

completion-date

2022

Completion Date
construction-value

1.7M

Construction Value
building-size

40K

Project Size
Solutions
Repair & Rehabilitation
Services
Structures | Applied Science & Research | Building Enclosures
Markets
Residential
Client(s)
Mutual 20A, A Leisure World Condominium
Specialized Capabilities
Repair & Strengthening | Roofing & Waterproofing | Materials Science
