San Francisco, CA

Animal Care and Control Facility

Scope/Solutions

The San Francisco Animal Care and Control (ACC) needed a new facility to expand and improve the services they offer. San Francisco Department of Public Works undertook a project to retrofit two 1893 powerhouse buildings for reuse as the new ACC facility. The new facility, with a complete animal hospital, offers clinical and emergency care for wildlife and pets. SGH provided construction engineering services to the contractor for the project.

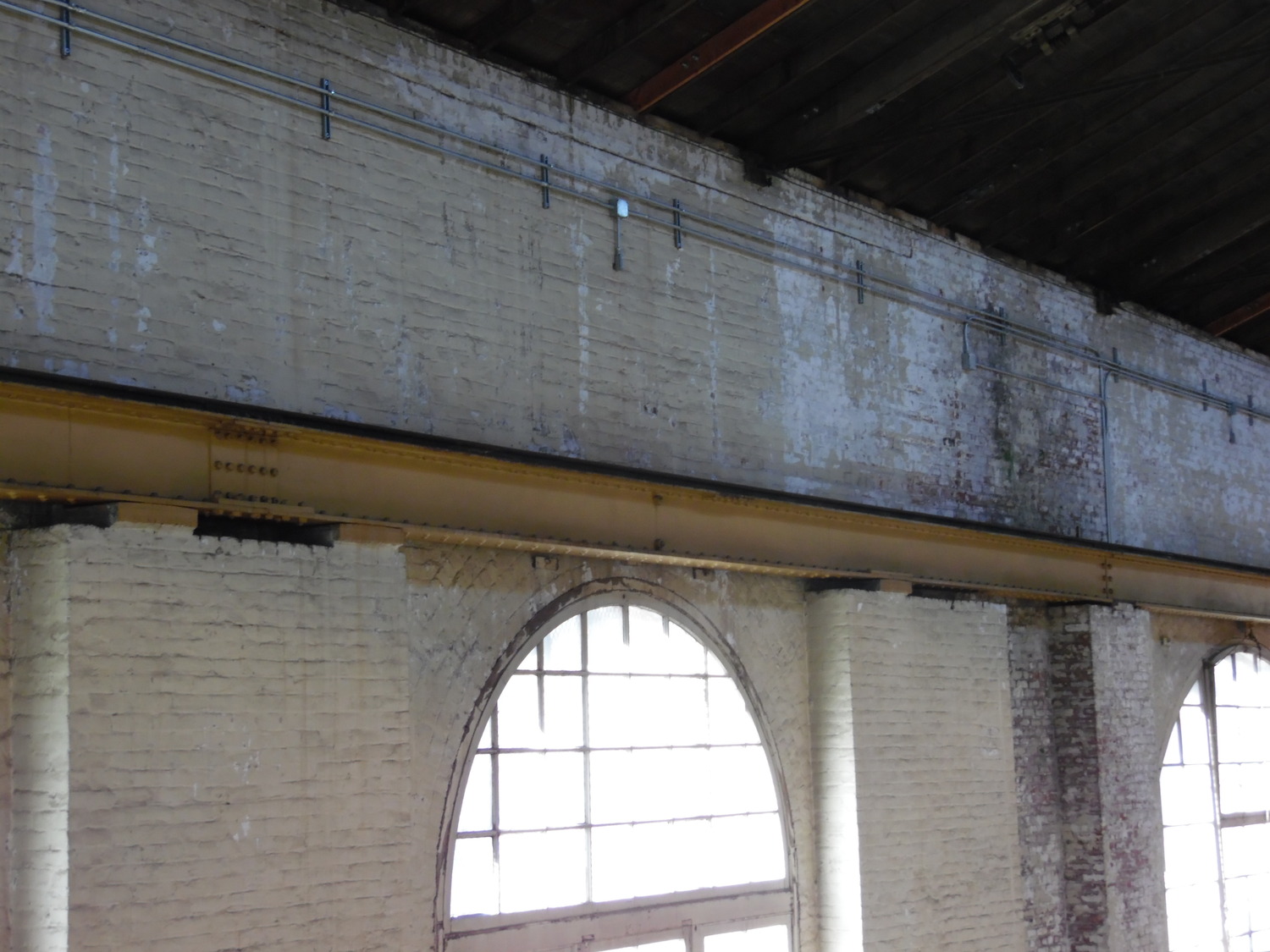

The former Market Street Railway Company powerhouse comprises unreinforced masonry structures and is a contributing resource to San Francisco’s historic Showplace Square District. SGH helped the construction team implement temporary shoring, protection of the historic walls, and construction sequencing. Highlights of our work include:

  • Developing a detailed construction sequence for retrofitting the walls and foundation
  • Evaluating the existing structure for wind, earthquake, and construction loads for the duration of the retrofit activities
  • Performing soil-structure interaction for the shallow foundation system
  • Designing wall shoring and bracing, including a temporary bracing system that allowed the contractor to remove interior columns and the roof
  • Evaluating existing floor slabs and calculating maximum permissible construction vehicle and storage loads
  • Evaluating below-grade walls and basements for stability during construction
  • Assisting with the shotcrete erection design and sequence for the wall retrofit

Project Summary

Icon: completion-date

2021

Completion Date
Icon: construction-value

77M

Construction Value
Icon: building-size

74K

Project Size
Icon: award-winner

Award

Winner
Solutions
New Construction
Services
Structures
Markets
Government
Client(s)
Clark Construction | San Francisco Department of Public Works
Specialized Capabilities
Seismic Engineering | Temporary Construction

Key team members

Sam Yao
Senior Principal
510.457.4452 sxyao@sgh.com
