Ottawa, Ontario, Canada

160 East Elgin Street

Scope/Solutions

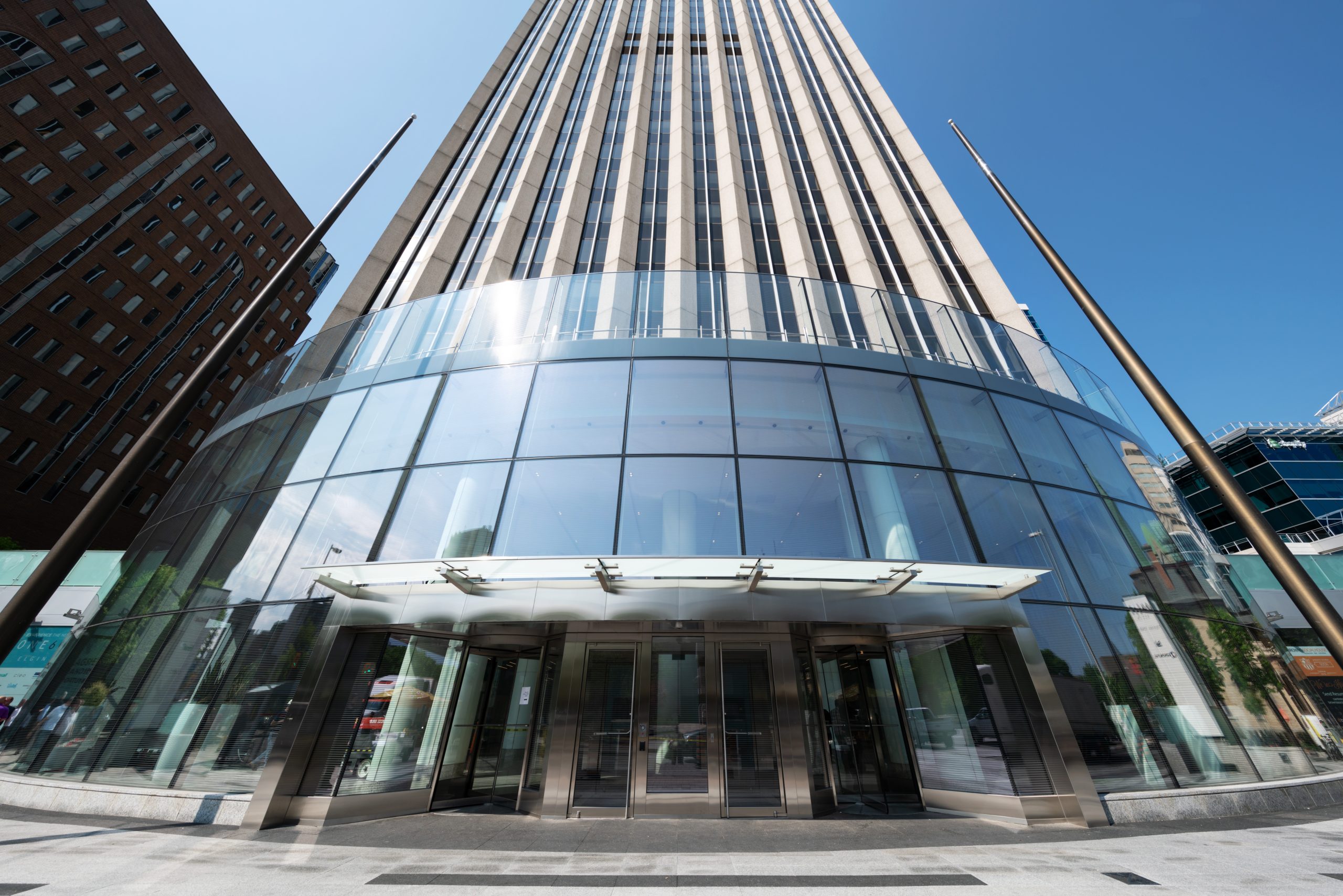

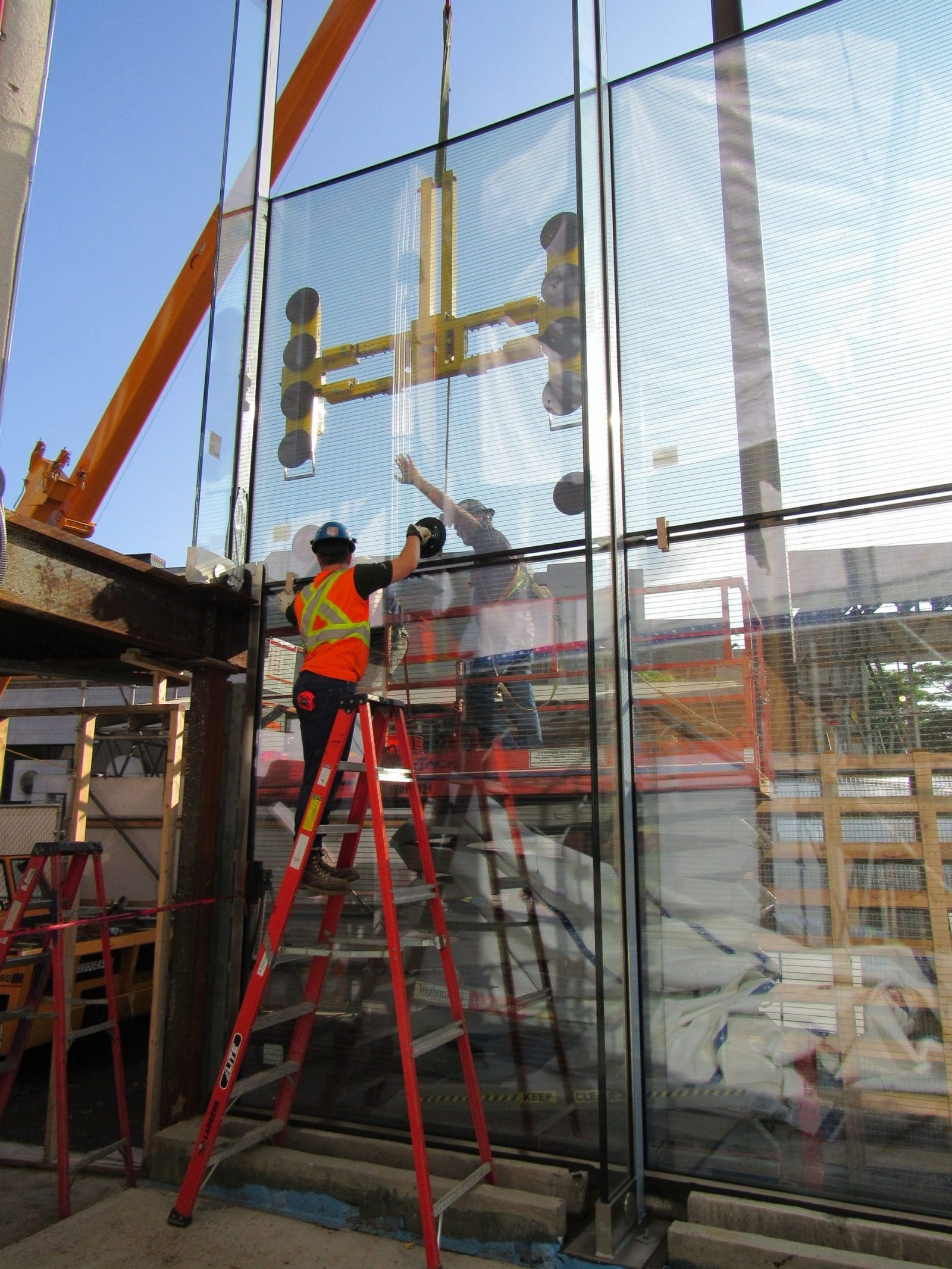

The owner of 160 East Elgin Street wanted to revitalize the streetscape at their twenty-eight-story tower by creating a striking front entryway. The renovation includes a curved and insulated structural glass wall, which is approximately 35 ft tall and cantilevers up an additional 10 ft as a guardrail for a terrace above. SGH served as the specialty glass consultant to the structural engineer for the curved glass wall design.

Highlights of SGH’s work for this project include the following:

  • Evaluated manufacturing options, including cold bending, laminate bending, and warm bending, for the curved insulated glass
  • Consulted on low-e coatings, acid etching, and frit applications
  • Reviewed concepts for gravity and lateral supports, including spider point connections, sill plates within the horizontal sealant joints, and lateral toggle connections
  • Performed finite element analyses of a full-height glass wall to determine the glass wall thickness
  • Designed the curved glass panels, sill plate and lateral toggle connections, and the structural glass fins
  • Analyzed the gradient temperature effects on the glass wall and connections
  • Developed a physical testing program to evaluate strength, serviceability, and water tightness of mockups comprising curved, insulated glass panels and their connections
